FUSION SUPREME PAD COMPLETE SET

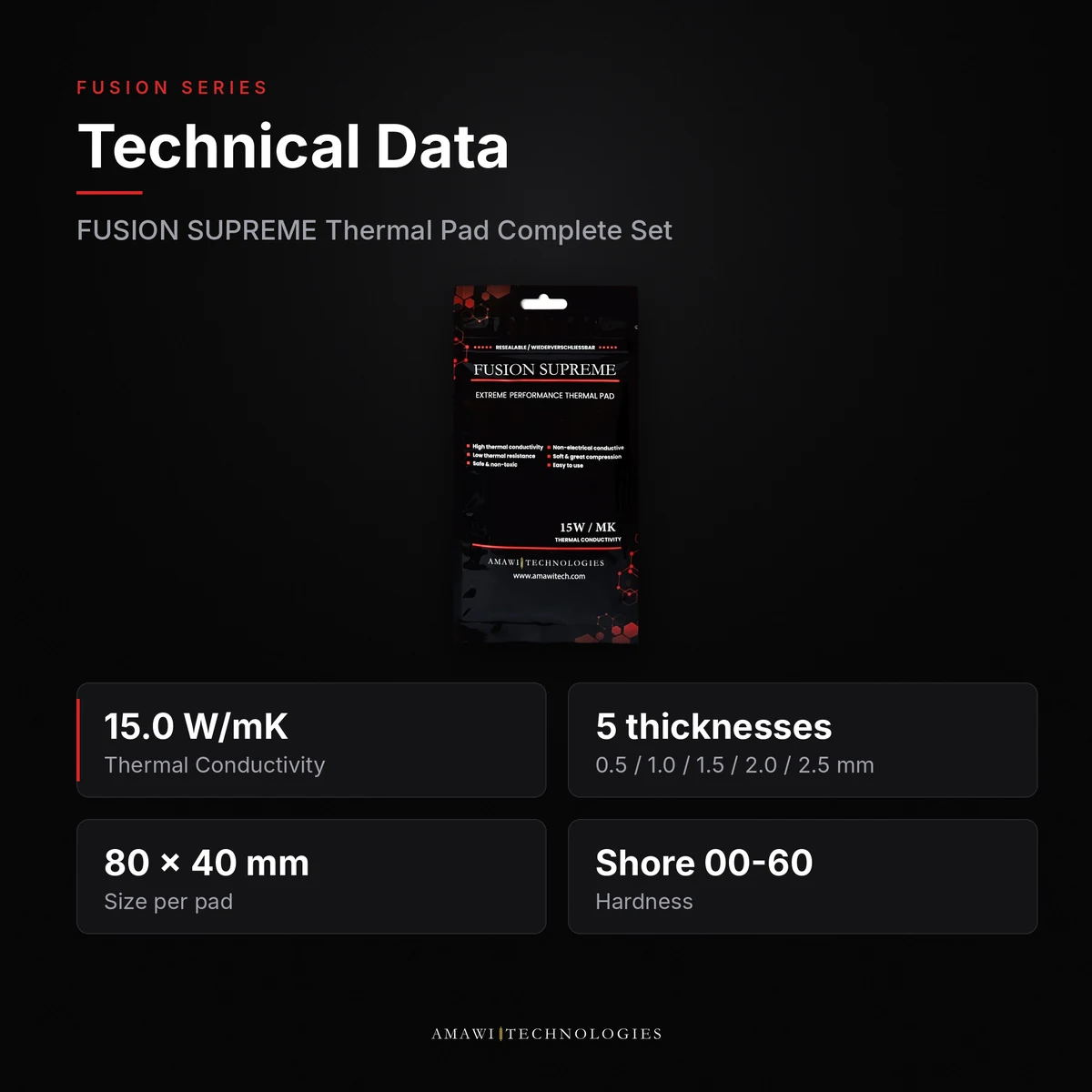

One Fusion Supreme Pad Retail unit at each of the 5 available 80x40mm thicknesses (0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm) - 5 pads total, each in its own individually packaged retail kit with foam holder, 2x alcohol wipes, 2x cotton swabs, and a spatula.

If you don't know the exact gap between your component and heatsink yet, are prepping several builds at once, or just want every thickness on hand for future repastes, the set works out cheaper than buying all 5 retail units separately - and you'll always have the right thickness in stock.

Measure the gap between your component and heatsink with a feeler gauge or caliper, or measure the original pad. Typical values, which vary by model and device: desktop GPU VRAM 1.0–2.0mm (often 1.5mm), laptop VRAM 0.5–1.0mm, VRM 1.0–2.0mm, GPU backplates 2.0–3.0mm, M.2 SSD heatsinks 0.5–1.5mm (usually 1.0mm), consoles vary by revision. If your measurement falls between two sizes, choose the next size up; on laptops and GPUs make sure the cooler still sits flat on the chip. Keep the rest of the set for your next build.

Yes. Every pad in the set is fully electrically insulating (9.8 kV/mm per ASTM D149) and not electrically conductive, so a stray placement or slight overlap onto PCB traces is safe.
