FUSION SUPREME PAD

Measure the gap between your component and heatsink/cooler with a feeler gauge or caliper. Choose the pad thickness that matches or slightly exceeds (by 0.1–0.2mm) that gap. For most CPU coolers with integrated heatspreader contact: 0.5mm is typical. For GPU VRAM and M.2 heatsinks: 1.0–1.5mm. For thick gaps in consoles or power delivery: 2.0–2.5mm.

Yes - thermal pads work universally. They don't depend on socket type or platform. Common applications: GPU VRAM cooling (replacing stock pads), M.2 NVMe heatsinks, console memory chip cooling (PS4/5 GDDR chips, Xbox Series memory modules), laptop VRM and VRAM strips. As long as you select the right thickness for your gap, it fits any application.

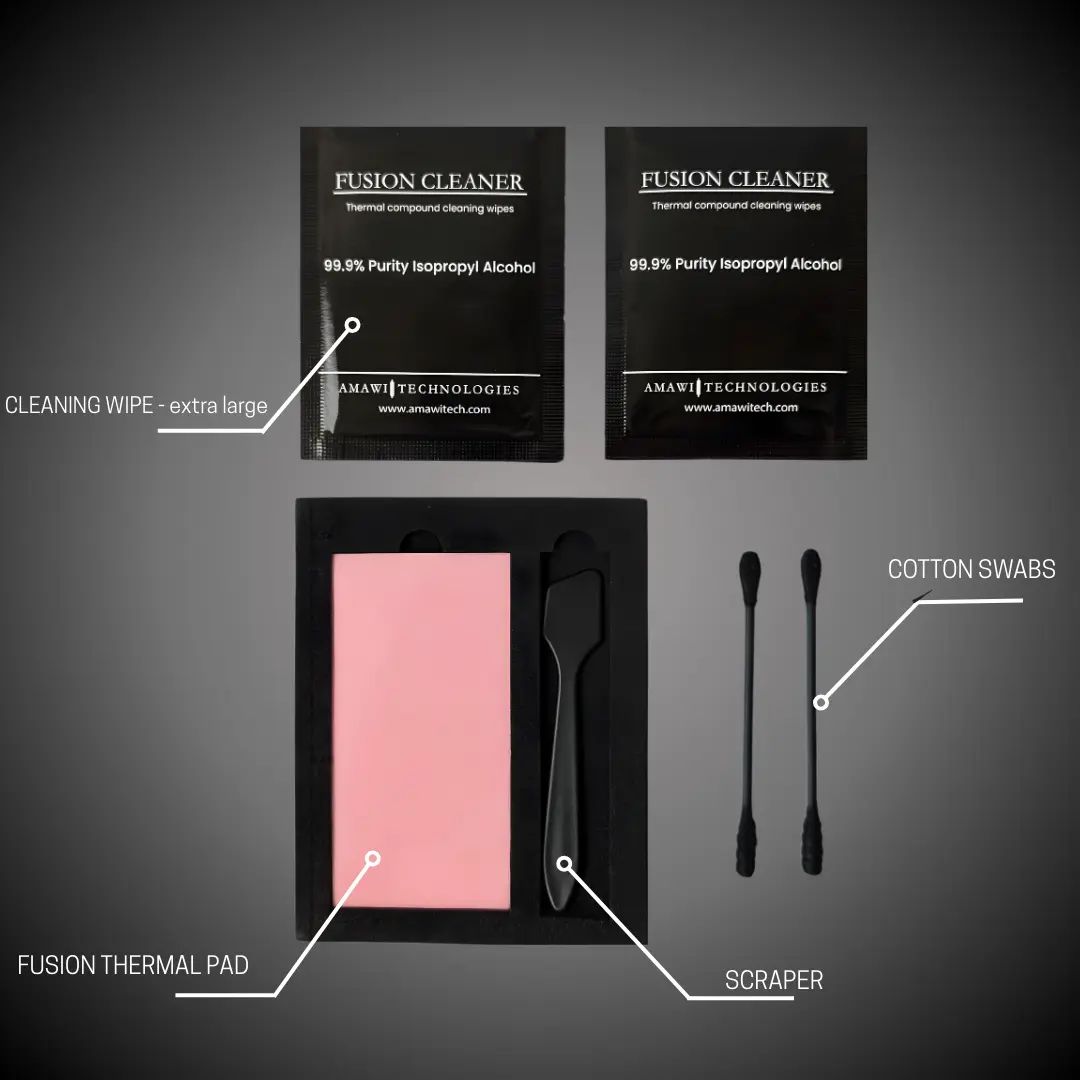

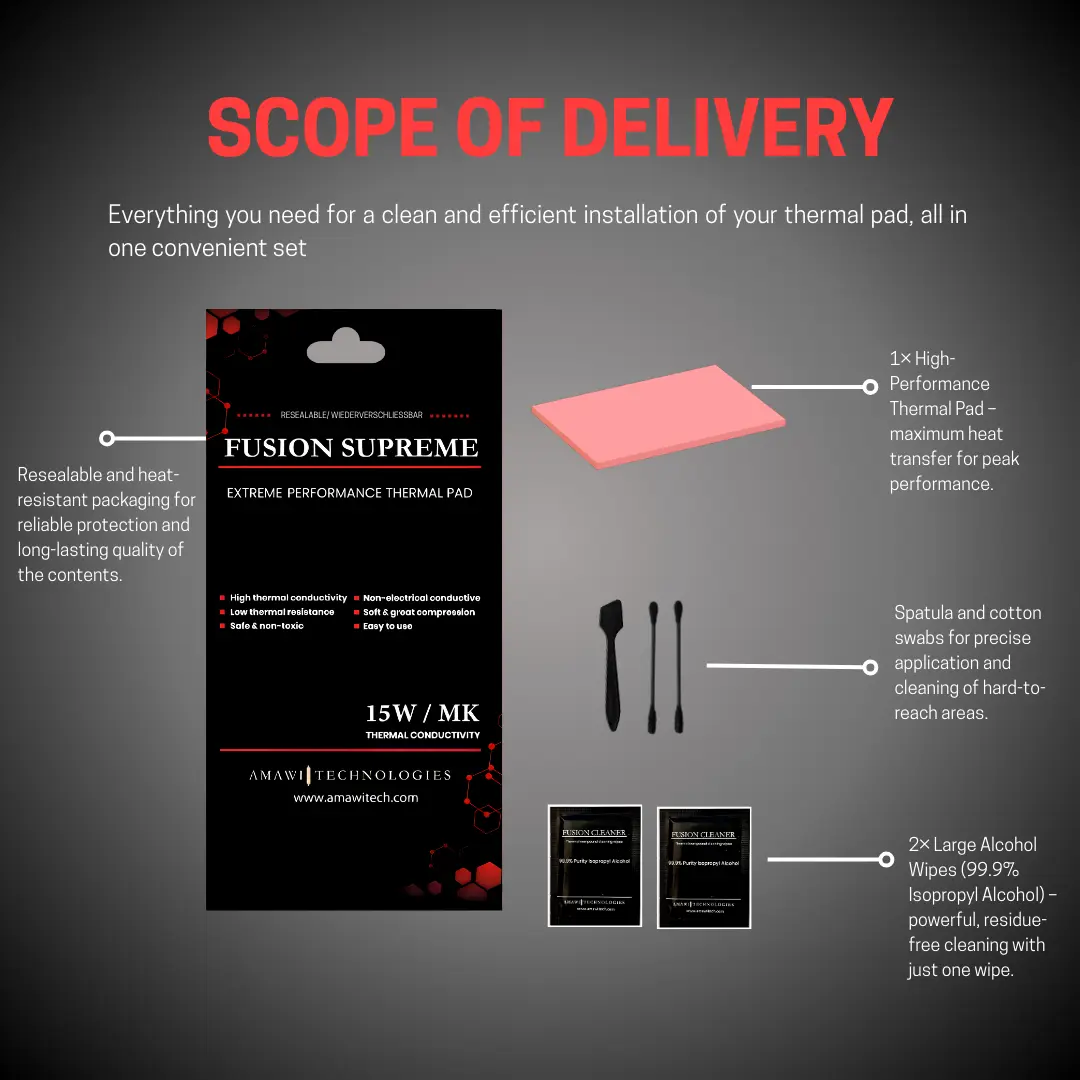

The Complete Set includes a foam protective holder, 2x alcohol cleaning wipes (large format, 99.9% purity), 2x cotton swabs, a spatula, and a resealable package: everything you need for a clean repaste. The Pad Only version contains just the pad in an eco-friendly paper package, ideal if you already have cleaning supplies or are buying in bulk.

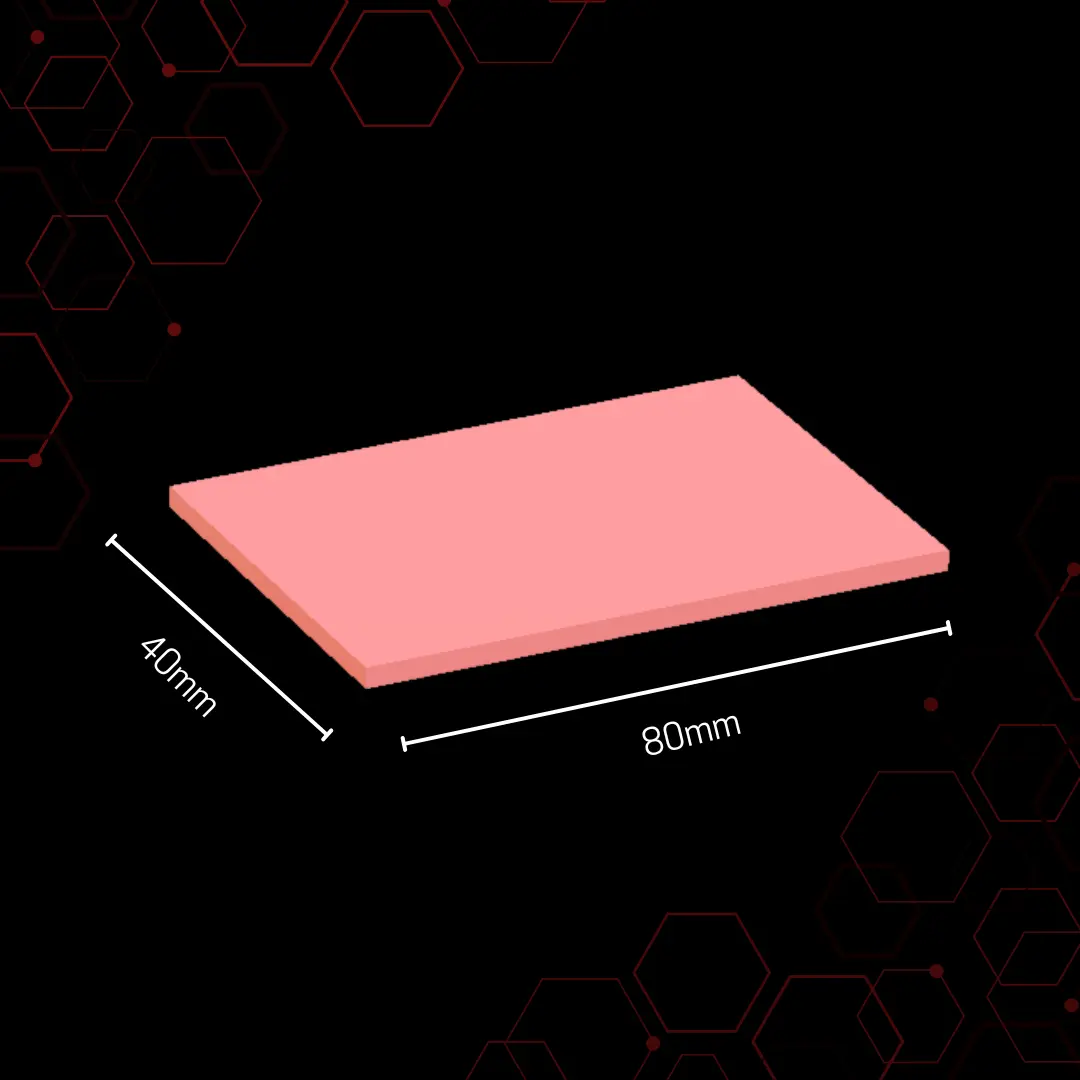

Absolutely. Fusion Supreme Pads are soft and easy to cut with scissors or a craft knife. The 80x40mm size can be cut down for GPU VRAM chips, M.2 SSDs, or any custom shape. The 120x20mm size is ideal for VRAM strips or memory modules where you need a longer, narrower pad.

Thermal pads are generally single-use - once compressed and heated, they conform to the surface and are difficult to remove cleanly. We recommend replacing the pad each time you disassemble the component for best thermal performance. The alcohol wipes included in the Complete Set make cleaning easy.

Yes. Fusion Supreme Pad is fully electrically insulating (9.8 KV/mm per ASTM D149 standard) and is not electrically conductive. This means a stray placement or slight overlap onto PCB traces is safe and will not cause short circuits.
